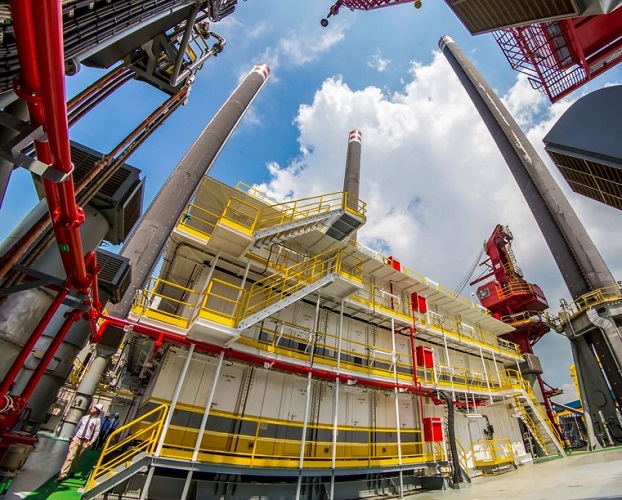

Designed and built by Baker Engineering Pte. Ltd., Project A3002, also known as Additional Living Quarters (“ALQ”) was completed in conjunction with the delivery of Blue Titanium (A3001) in April 2018.

Accommodation is catered for up to 144 person in four man sleeper configuration with attached bath.

The ALQ is verified by the American Bureau of Shipping and cabins are A60 fire-rated, suitable for safe area usage. A fully equipped ALQ comes with facilities shown in the following tabs.

4-man Configuration
20ft Cabin Specifications

• Electrical Load: 7.8 kW
• Gross Mass: 9000kg
• Fire Integrity of External Boundary: A60

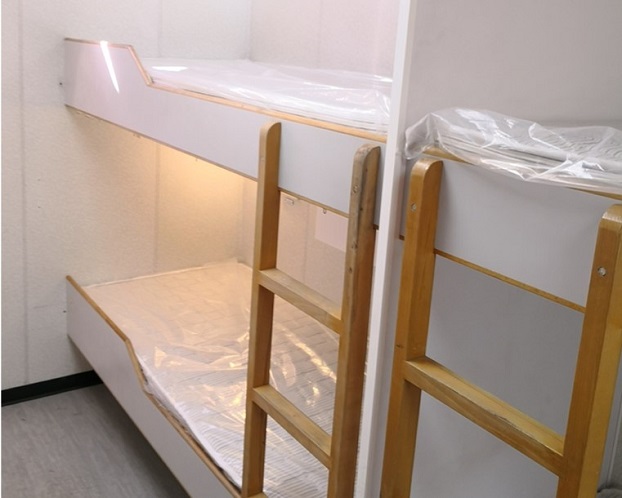

• 4 man sleeper configuration c/w attached bath
• Verification by ABS
• Non-Hazardous / SAFE Area Use
• SOLAS / IMO Safety Features
• Fire & Gas Detectors, Emergency Exit Lights
• Complete with HVAC Units
• Lifting Padeyes c/w Load Test
• ABS verified Asbestos Free
• Suitable as Offshore Temporary Living Quarters / Additional Living Quarters
• Designed to be Lifted on, Hookup and Ready to Use
• Offshore Accommodation Modules for Offshore Platforms & Vessels.
• Temporary Accommodation Modules c/w Lifting Padeyes
• Suitable for Safe Area Usage
• Optional Zone 2 HVAC and / or F&G Equipment
• Stackable with Standard Fittings

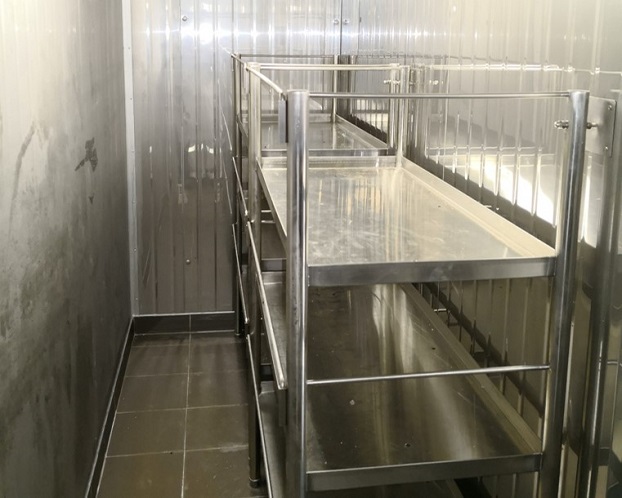

1 x 100sqm Cold Room

• 45sqm Freezer Volume
•  50sqm Chiller Volume

1 x Auxiliary Machine Room
• Power Panels
•  Transformer
• Sewage Treatment
• Potable Water Pressure Pumps

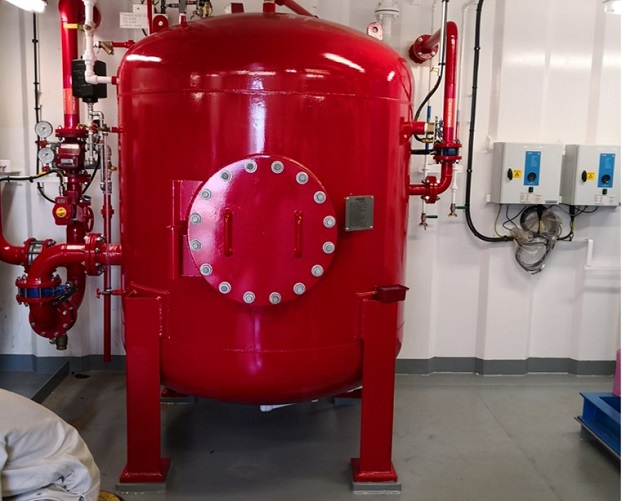

• Sprinkler Tank

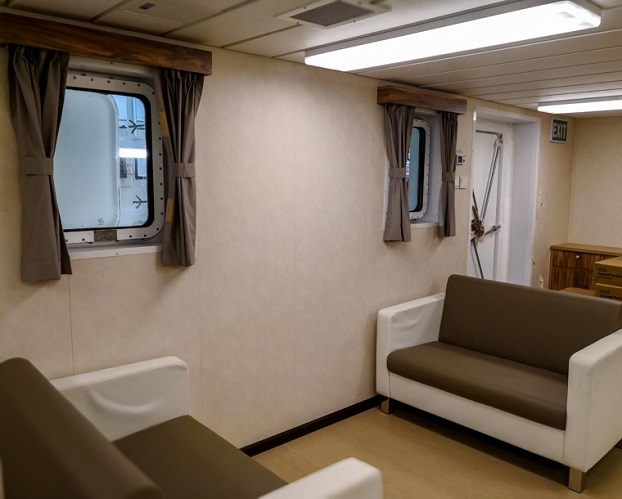

1 x Recreation Room

• Max. Capacity of 40 men
• Fully Furnished

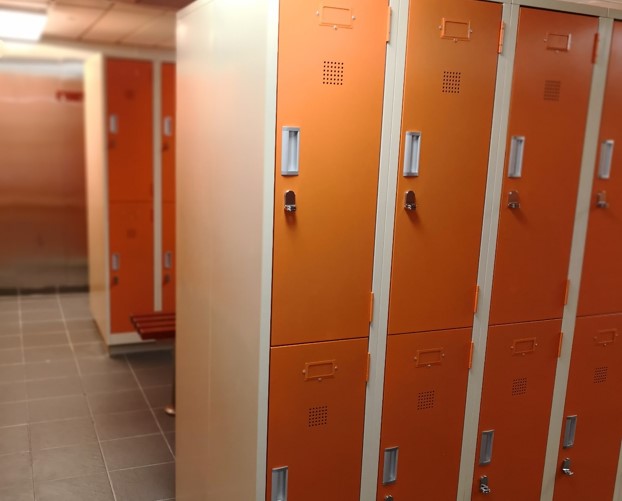

1 x Change Room

• Up to 144 2-tier Lockers
